Proper Reducer for TOA-130 scope

So, now where I know that the Super Reducer won't work for me, I was looking for others. I found quite the plethora of reducers:

Number	Focal Ratio	Image Circle	Backfocus	Price
TKA31580	f5.4	44mm		$719
TKA31580L*	f5.8	65mm	106.2mm	$3000
TKA31580S	f5.8			$745
TKA32580A	f/5.4	44mm		$1190
TOA130R	f/5.76			$719

Apart from the various adapters that I need which one to choose??? Asked on the Uncensored Takahashi mailing list.

* This is the Super Reducer that I tried ...

---

Most people pointed to the TKA3250A reducer. This is its spot diagram:

Not quite as good as the .67 flattener but WAY better than the 645 reducer.

Takahashi Super Reducer - again ...

I never received an answer from Takahashi America on my problems with the Super Reducer. So, I sent an email to Takahashi Europe to ask for help.

I received an answer almost right away!!!

The advice was to focus not in the middle of the image but 1/3 on the outside as sketched on this image:

I didn't really know how to achieve this (neither TSX nor SGPro allow to focus "off center")

So, instead I focused as normal and then move the focuser in and out within the critical focus zone (and a little beyond) to see if the curvature changes.

The critical focus zone of the TOA-130 with the Super Reducer is 170 microns. The step size of the FLI Atlas focuser is 0.085 micron / step. I.e. I need to move the focuser 2000+ steps to go in and out of the critical focus zone.

Unfortunately, this didn't make large (enough) difference. The curvature was always between 17 and 22 degree. But never significantly better...

---

The answer from Takahashi Europe was somewhat disappointing:

"The field is flat with the 67FL.
The field is slightly curved with the SRD645."

Here are the spot diagrams for both:

.67 Flattener	645 Reducer

I guess that means that this reducer doesn't work - at least for me ...

First Image with double stacked Lunt scope

After installing the DSII module on my Lunt scope, I exchanged the eyepiece for the camera and tried to take my first image.

I took some images just before installing the DSII and after. Let's compare these:

Single Stack	Double Stack

Hmmmm, before even comparing further. There seems to be some strange banding on the Double Stack image. I checked all other images. Took another series again ... always with the same result.

Posted on the Solar Chat Forum about it ...

Update October 22:
These seem to be Newton Rings. Not sure why I didn't see these before. But apparently tilting the camera a little bit eliminates them. Order this little tilter that should fix this.

Installing a double stack module on my Lunt solar telescope

With the hope of even more contrast, I ordered the Double Stack Module for my Lunt scope. I actually received it a few weeks ago, but decided not to change my equipment before the eclipse in August.

Today, was a very clear day and I thought I'll install it.

Here is a picture of the scope plus the Double Stack Module (plus instructions):

Installation was fairly straight forward:

1. Remove the rear part right after the red tuner:

2. Next, attach the Double Stack Module to the pressure tuner:

 (I first didn't understand that the red pressure tuner stays in place - I thought that the Double Stack Module will replace it).

3. And finally attach the focuser extenstion tube to the Double Stack Module:

That was (almost) it!!!

When I use the eyepiece, I could use the instructions like a charm:

1. Refocus
2. Now, the image looked quite dim
3. Turning the PT cylinder on the Double Stack Module until the image is bright
4. Now, tune the Single Stack Tuner as usual
5. And finally, tune the Double Stack Module until maximum contrast.

Visually, I "think" I could see a difference, but wasn't sure. So, I popped in my Grasshopper camera to take images to compare.

... but now I could not focus anymore !!!

Turns out I skipped one part of the instructions: "Make sure you remove the black extension piece from the focuser prior to installation" (to make me feel better, I am apparently not the only one who forgot that...) Well, that makes sense, the Double Stack Module moved the whole focuser extension back. So, I remove the extension piece...

... and voila! Now, I could focus again!!!

Double Cluster, Heart Nebula and Soul Nebula

This is the second image with my Pentax-based imaging system:

(click on image for full resolution image)

The three main objects in this image are the Double Cluster, the Soul Nebula (top) and Heart Nebula (below). They are all in the Perseus arm of our galaxy (earth is in the Orion arm) and in similar distance. The Double cluster is 7500 light years away, both nebulae 6500 light years.
The Double Cluster is relatively young (12.8 million years) and appears to be slightly blueshifted. This is a result of its movement - it races towards earth with 38/39 km/sec!
The cluster can be seen with the naked eye in really dark areas and easily with a binocular. It was discovered 130 B.C. by the greek astronomer Hipparcus.
Both nebulae are actually one gigantic complex that is 300 light years wide! They are connected by a bridge of gas. Both are birthplaces of stars in their center (which is why their centers are less red: a lot of gas has already been consumed by new stars). The stars in their centers are just a few million years old - and they are younger the further they are away from the center.

Processing this image was made difficult by the bloated stars in the LRGB images:

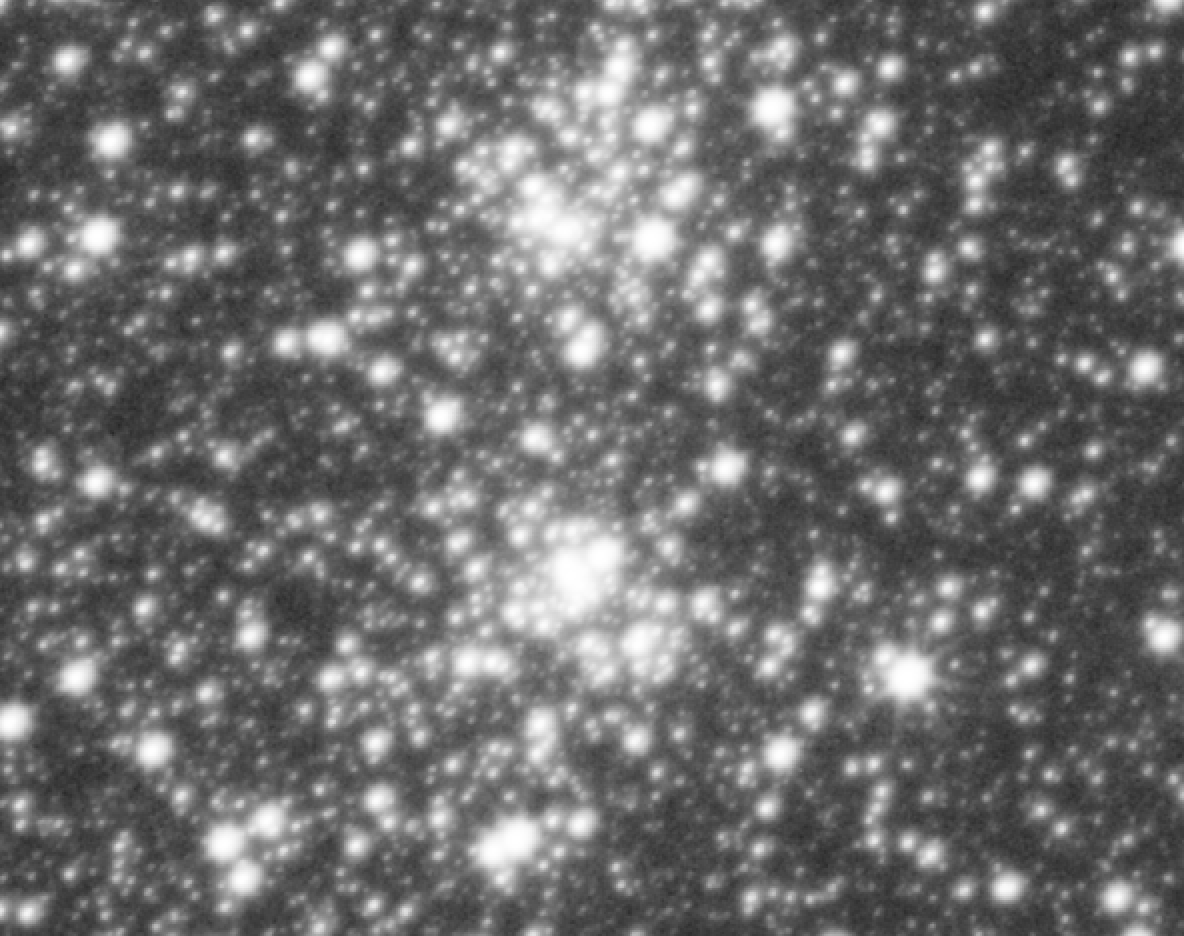

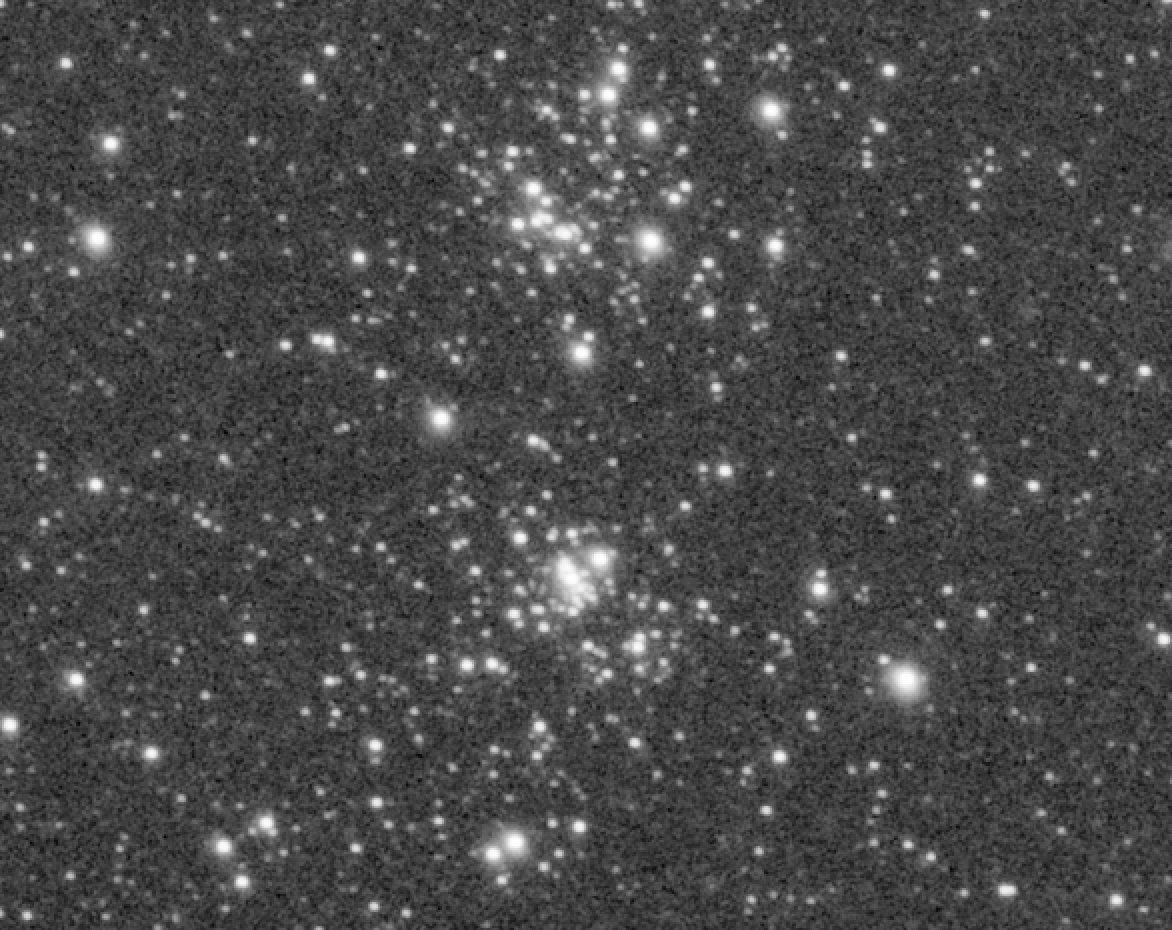

Luminance	Ha

I compensated for this already in the linear state by shrinking the stars using the MorphologicalTransformation process in Pixinsight (again, using one of he awesome tutorials on lightvortexastronomy.com):

First, I created a "contour star mask" from the stretched image:

This star mask should cover exactly the stars. Here is how the inverted mask looks::

Now, we apply the MorphologicalTransformation process:

And here is the result before and after:

Before:	After:

It's a subtle difference (which is good as we don't want to completely change the image) - but makes a huge difference further downstream.

The North America Nebula

This is the first successful image of my Pentax-based imaging rig:

(click on image for full resolution)

Processing this image was a challenge - mostly because the imaging scale is so different then my images from my Takahashi TOA-130 scope. It has A LOT of stars and very little true background.

This nebula is four times the size of the full moon (which demonstrates the HUGE field of view of the 55mm lens!!!) The nebula and the Pelican Nebula (the lower, smaller nebula) are part of the same interstellar cloud of ionized hydrogen - which is forming stars. Between the nebulae and us are dust lanes that create the shape. We don't know for sure how far the nebula is away from us and what its dimensions are. Some speculate that Deneb (the very bright star in the lower part of the image and one of the brightest stars in our skies) ionizes this nebula. which would put it at a distance of 1800 light years and a diameter of 100 light years!

Comet Tracking

I read about C/2017 O1 ASAS-SN. As this comet is currently nice and high in the sky (at least in the second half of the night) I decided to give it a shot.

First, I just pointed the mount to the point in the sky where the comet is and started imaging:

(OK, ignore the dust motes for a second :-) But you can clearly see the comet in the middle right. Zoomed in:

Yep! There it is. But of course elongated as the scope is tracking the stars - not the comet.

So, I used Horizons (part of APCC Pro) to track the comet. I think Ray Gralak did a great job with Horizons. It's a little complicated at first to setup, but once you went through it once or twice, it's actually very easy!

With that, now, my images looked like this:

The comet is in the middle - and you can already see that the stars are elongated. Zoomed in:

:-(

It looks as if Horizons adjusts the mount only every few minutes (these are 10 minute exposures) ...

... on second thought, this could also be my PEC gone wrong. Tonight, I'll try 10 minute unguided exposures with and without PEC to see what happens ...

A Pentax lens based imaging rig

1+ year ago I started to work on a Pentax lens based imaging system. I saw some wide angle shots that were made with 30 - 60mm lenses that looked amazing. And because of the resolution, these images can be taken without guiding and just a good enough pointing model. Almost "point and shoot" style.

Why Pentax lenses?
Pentax 67 lenses have three properties that make them suitable for astro-imaging:

1. Backfocus
   These lenses have a backfocus of 84.95mm(!!!) - enough to put focuser and filter wheel between it and the camera
2. Imaging circle
   These lenses have an imaging circle of almost 8cm(!!!) - more then what most CCD cameras have.
3. Quality
   Being made by Pentax, the optics of these lenses is remarkable. Definitively good enough for astro-imaging.

I purchased a Pentax SMC 67 45mm F4 lens - it's very short and will create a LARGE image circle of more then 700 arc minutes!!!

Adapter

First, I had to get an adapter. I was planning to use a PDF focuser from FLI and the CFW2-7 filter wheel from FLI plus my MLx694 camera:

MLx694: 21.0 mm

CFW2-7: 20.9 mm

PDF: 29.84 mm

___________________

50.1 mm

That means that the adapter has to be 84.95mm - 71.74mm = 13.21mm thick - from the Pentax bayonet to the PDF focuser thread. Unfortunately, preciseparts can't make the adapter shorter than 24.00mm. I actually ordered the 24mm adapter, but couldn't achieve focus with it.

I checked some local companies who make adapters like these. But most didn't even get back to me - they probably only make adapters in MUCH larger numbers.

Next, I ordered a Pentax bayonet adapter with a different other side and tried to make one myself - but my skills on the lathe weren't nearly good enough to make one that is rigid and exact enough ...

A different approach would be to use a Robofocus focuser to actually turn the focuser of the lens itself. This would remove almost 30mm from the system and be plenty enough (see here for an example). But that sounded tricky as I would have to mount the focuser next to the lens stable enough that it can turn the lens. This didn't pass my test for a simple, robust system...

Finally, Richard borrowed me his adapter that he made for himself for the same purpose a few years back.

Problem #1 solved.

Mounting

Now, assembled, this is the whole imaging train:

My first attempt was to 3D-print an adapter to put this on top of a losmandy dovetail:

This worked, but it moved the whole thing pretty high up which made it less stable and also required A LOT of counterweight to balance it.

Luckily I realized that the holes in the FLI camera are exactly the same distance as the holes on the dovetail!!! That made it much easier to mount it!

First Light - weird halos

Finally, I could take out my camera and try it. This was the result:

Not too bad! But when you zoom in:

There are some weird halos around the stars. This turned out to be a major pain in the ...

First, I tried to use a UV cut filter. These lenses are very sensitive to UV light and it could be that this is the cause (though unlikely as this is a narrowband image, i.e. UV should already be filtered out).

Next, I thought that this might be stray light and put a lens cap on - same result.

I tried different f-settings - no improvement.

Finally, I took my setup to Richards ranch and we worked on it. He also couldn't find anything wrong. But he checked the setup of the lens. And in a diagram, he noticed that the last element of the lens is almost extruding from the lens and is curved. He suspected that what I see are reflections from the lens.

First Light 55mm lens

To check this, I purchased a PENTAX 67 SMC P 55mm F4 F/4 lens. I'm glad that I didn't go the route of using a Robofocus focuser, otherwise, I'd have to fuzz around with the setup as the focuser wheel of this lens is in a different position as the 45mm lens ...

First light:

Looking good! Zooming in:

Yei! No halos. Some fuzziness around the bright stars left - which is probably a result of the UV-sensitivity (I should get a UV cut filter for this lens).

Plate Solving

I want to use this rig with my MyT mount, so that I can build a pointing model and use that to track without a guidescope.

Sounds easy, but plate solving at this scale is a challenge!

Using the entire image usually doesn't work as there are WAY too many triangulations (it's kind of fun to watch this in TheSkyX which shows which frames are considered - it's jumping around like crazy!!!)

Pinpoint doesn't work at this scale at all to begin with.

Through a lot of trial and error, I determined that these are the best settings:

Filter: Luminance

Exposure: 8 sec

Binning: 2x2

Image Crop: 50%

One challenge remains if I image from out backyard: light pollution! Because of the relative small aperture, the stars don't stand out from the light-polluted background and are often missed. Nothing I can do about that :-(

Another challenge is that often earthly objects (trees, our house...) cover some of the image and create "artificial stars". Though the resulting images are sometimes really cool:

Focusing

This was (and still is) really tricky.

Because of the short focal length, the critical focus zone is 78 microns(!!!)

This means three challenges:

1. Focusing has to be very exact
2. The focuser can only be a little bit away from the focal point - otherwise the stars are so out of focus that they aren't recognized anymore.
3. I have to refocus a lot during the night.

And of course, focusing routines also suffer from the same problem as plate solving: our light polluted backyard - which makes stars often not stand out enough ...

I am using the following settings (in SGPro):

Number of data points: 9
Step size: 70 (these two settings are the most sensitive ones: too small and I have to move the focuser too close to the focus point to start with plus it doesn't move out far enough to create a good v-curve, too large and the focuser moves too much out and SGPro doesn't recognize any stars)
Minimum Star Diameter: 6
Binning: 4x4
Exposure time: 20 sec for LRGB, 45 sec for narrowband filters

Flats

Taking flats is something I have not figured out at all:

• Sky flats always have gradients (because of the large image circle). Even if I put a white t-shirt on it to diffuse the light - there are still gradients.
• Flats with a flat panel create weird patterns (probably because of the proximity of the panel to the lens).

:-(

First Images

With all this figured out just in time for OSP, I took my first two images: the North America Nebula and the Double Cluster/Heart Nebula/Soul Nebula together. I took the LRGB data for both images at OSP and augmented it with narrowband data taken from our backyard.

Result

I have a lightweight, wide-field imaging rig!!!

But because of all the remaining instabilities in focusing, plate-solving, flats... it's pretty far from the point-and-shoot vision that I had :-( I'll keep trying, but maybe instead I should reconsider getting that awesome RH 200 Veloce from Officina Stellare :-)
